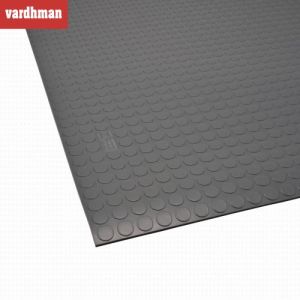

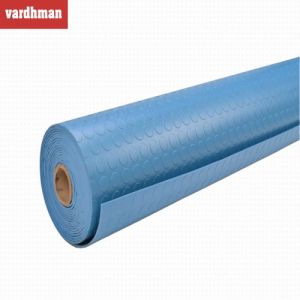

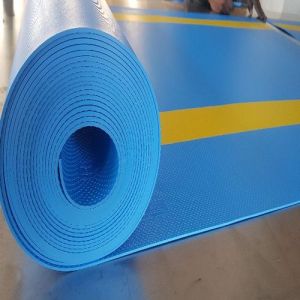

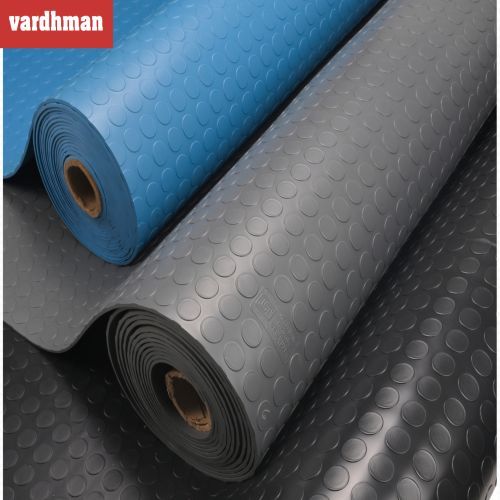

Electrical Insulating Mats
|
Vardhman High Voltage Electrical Insulating Mat is considered as personal protection equipment(PPE), it is specially designed for use in front of open switchboards or high voltage equipment. Used in many Industrial Plants and Factories to protect against electrical shocks. Vardhman is manufacturing electrical Insulating mats in India, since 1996.
Features
- ISI Marked, ERDA & CPRI Type Tested insulating mats.
- Tests and specifications also meet BS 921, IEC 61111, ASTM.
- For both A.C. and D.C. applications.
- Di-electric Strength 65KV (650000volts)
- AC proof Voltage up to 36KV.
- Low Temperature resistant.
- Acid, Alkali,Diesel & Transformer oil resistant.
- Flame Retardant.
- Good Aging properties.
- High Insulation resistance exceeding 1100000
- High tensile strength and elongation properties.
- Leakage Current less than 1mA.
Note:

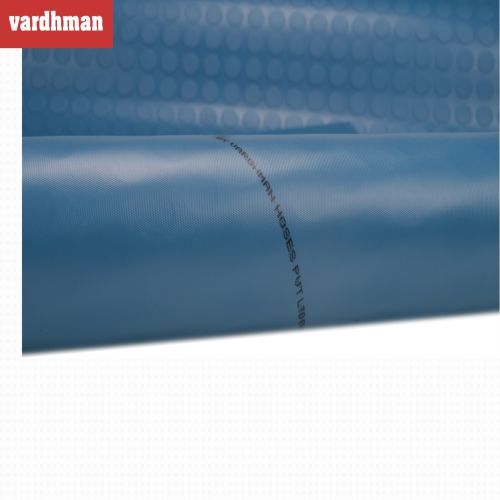

1. Mats shall be ISI embossed at every meter with unique CM/L No.
2. Mats shall be Type Tested by ERDA.
3. Mats shall be pastable type. Pasting/Fixing or request.
4. Inspection facilities are available.
5. In-house test certificate along with supply
6. Mats shall be replaced on first sign of any damage.
Specifications
| Form | Rolls or Mat |
| Length | 5M/10M/20M |
| Width | 3ft(900mm)/1M |
| Color(*Other colors as per request) | Red/Black/Blue/Grey |
| Thickness | 2mm, 2.5mm, 3mm |
| S.No. | Specification | Class A | Class B | Class C |
| 1 | Thickness | 2.0mm | 2.5mm | 3.0mm |
| 2 | Max. use Voltage | 3.3KV | 11KV | 33KV |
| 3 | Ac Proof Voltage | 10KV | 22KV | 36KV |
| 4 | Ac Di-electric Strength | 30KV | 45KV | 65KV |
| 5 | Max. Leakage Current | 10mA | 10mA | 10mA |
| 6 | Min. Insulation resistance measured by 5000 V megger | 1,00,000 M | 1,00,000 M | 1,00,000 M |
| 7 | Min. Tensile Strength (N/mm2) | 15 | 15 | 15 |
| 8 | Min. Elongation(%) | 250 | 250 | 250 |
| 9 | Minimum Retention in Tensile Strength and Elongation from Original Value on Ageing at 70+-1'C for 168hrs | T.S-Min.75% E.L-Min.75% |
T.S-Min.75% E.L-Min.75% |
T.S-Min.75% E.L-Min.75% |
| 10 | Minimum Retention in Tensile Strength and Elongation from Original Value when immersed in Acid/Alkali/Diesel/Transformer Oil for 48Hrs | T.S-Min.80% E.L-Min.80% |
T.S-Min.80% E.L-Min.80% |
T.S-Min.80% E.L-Min.80% |
| 11 | Low Temperature | Yes | Yes | Yes |
| 12 | Flame Retardance | Yes | Yes | Yes |
| 13 | Composition | Synthetic Elastomer | Synthetic Elastomer | Synthetic Elastomer |
